Modular system adapted to your production
DURABLE FEEDER
SYSTEMS
Modular system adapted to your production
BÖLL-TEC FEEDER SYSTEMS
The heart in any screwautomation.
Our feeders are deployed in many different industries like ex. Wood and Automotive and they are proven to be reliable over many years of deployment with 24/7 operation. 3 standard feeders covers screwsizes from ø2 mm till 22 mm.

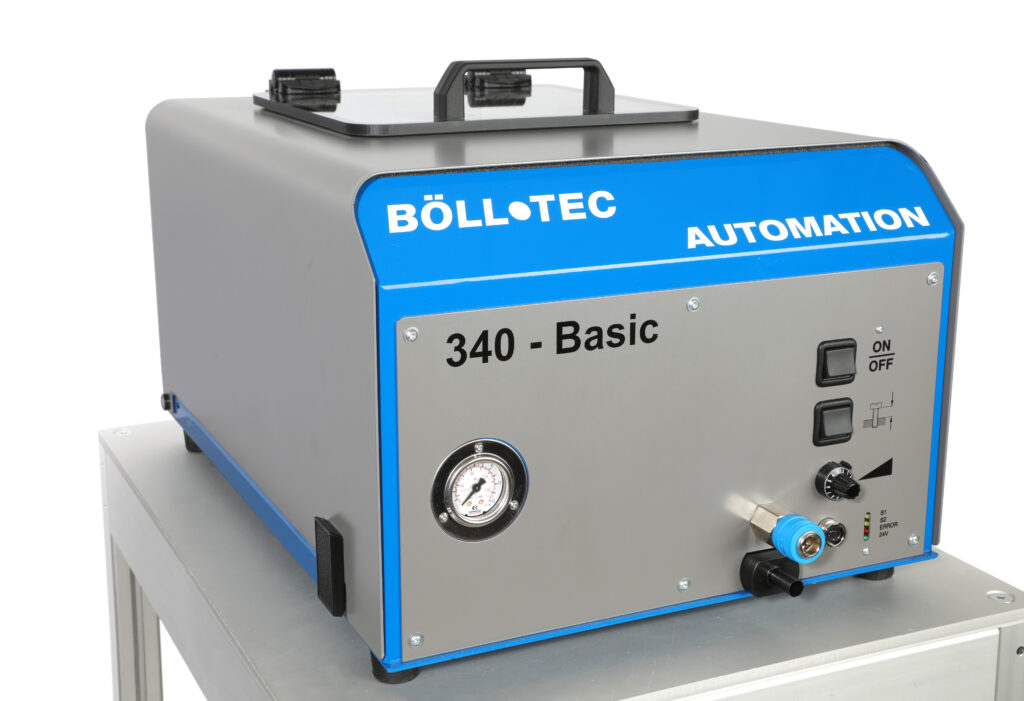

| Type 250 | Type 340 | Type 360 | |
|---|---|---|---|
|
Track width |
2.0-9.5 mm |
10.0-14.5 mm |
15.0-22 mm |
|
Fastener head diameter up to |
9 mm |
14 mm |
22 mm |
|
Fastener length up to |
45 mm |
55 mm |
70 mm |
|
Filling volume |
1 L |
2.5 L |
3 L |
|
Dimensions in mm (W x D x H) |
370 x 540 x 330 |
420 x 600 x 340 |
500 x 600 x 400 |
|
Open cover hood H2 |
520 mm |
600 mm |
- |
|
Open covering lid H3 |
560 mm |
660 mm |
- |
|
Weight |
28 Kg |
32 Kg |
>50 Kg |
|
Compressed air connection |
|
6 bar |
|
|
Power Supply |
|
220 V AC / 24 DC |
|
